How To Set up a Frame Grabber

This document is a tutorial explaining how to set up a frame grabber. In this tutorial, we will use a C-RED 3 camera and a MATROX eV-CL grabber.

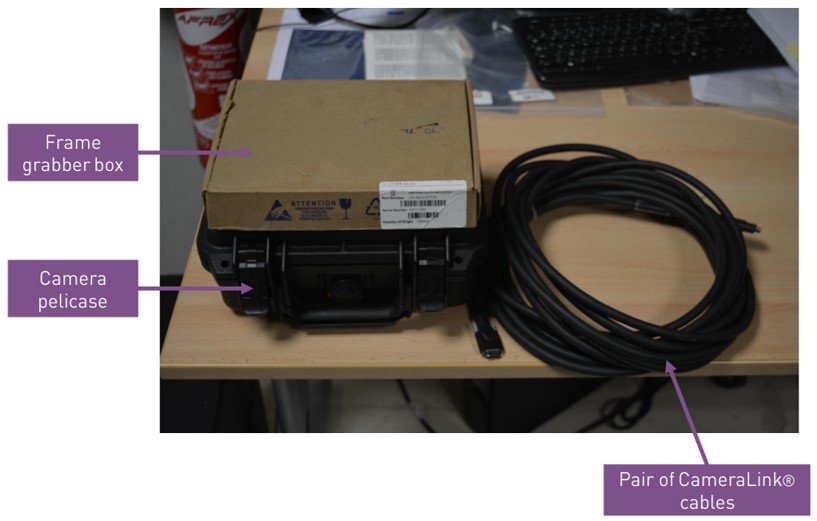

Material List

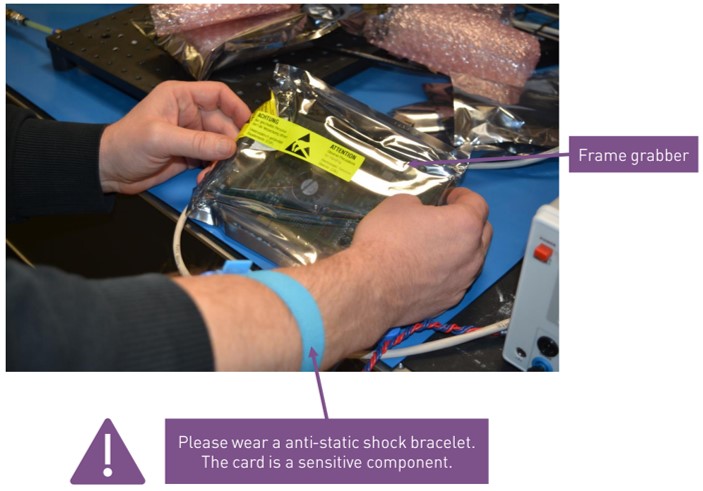

Precautions To Handle The Frame Grabber

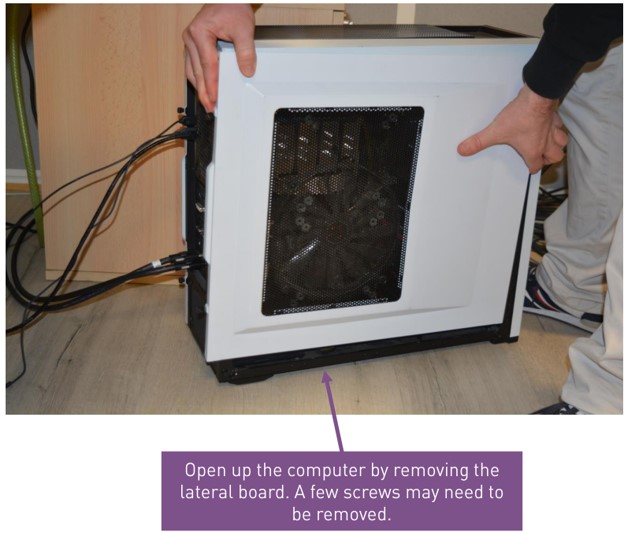

Open the Computer

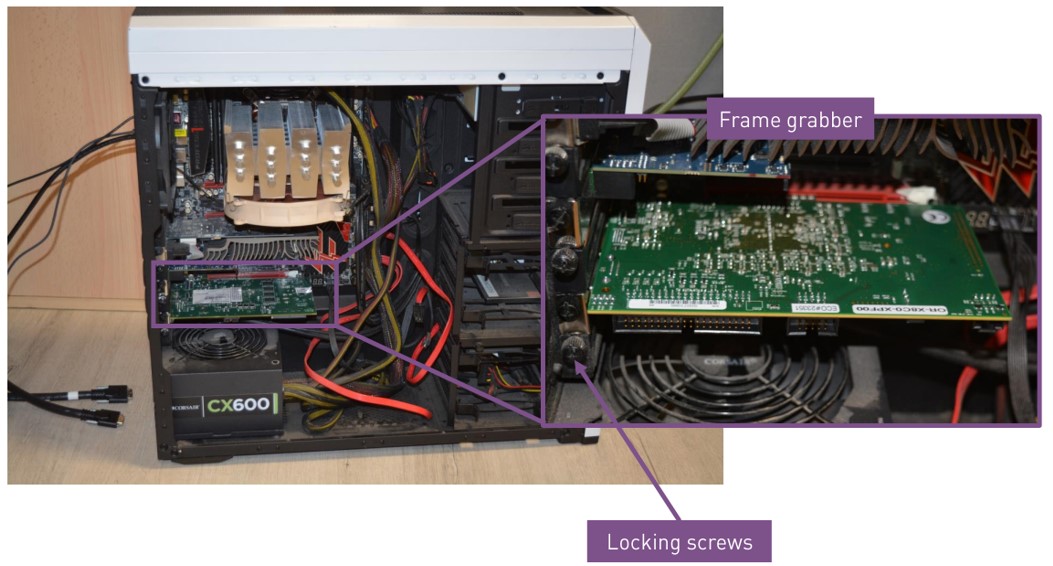

Inside View of the Computer

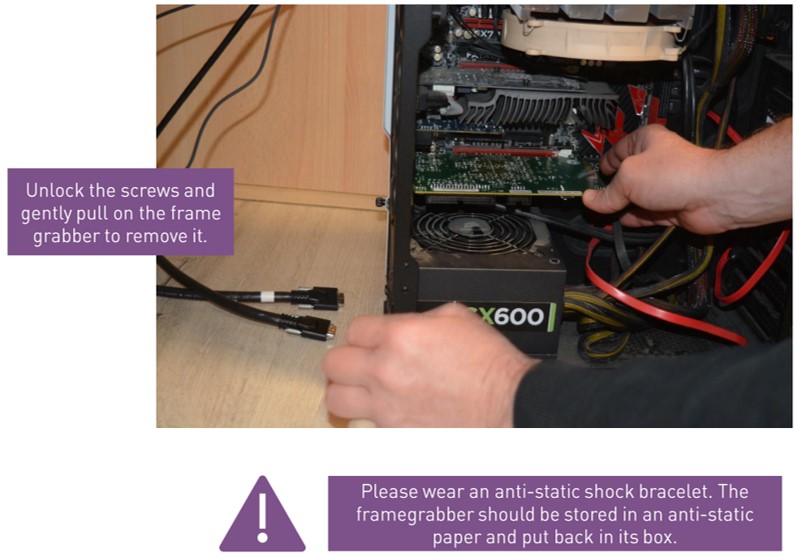

Remove the Frame Grabber

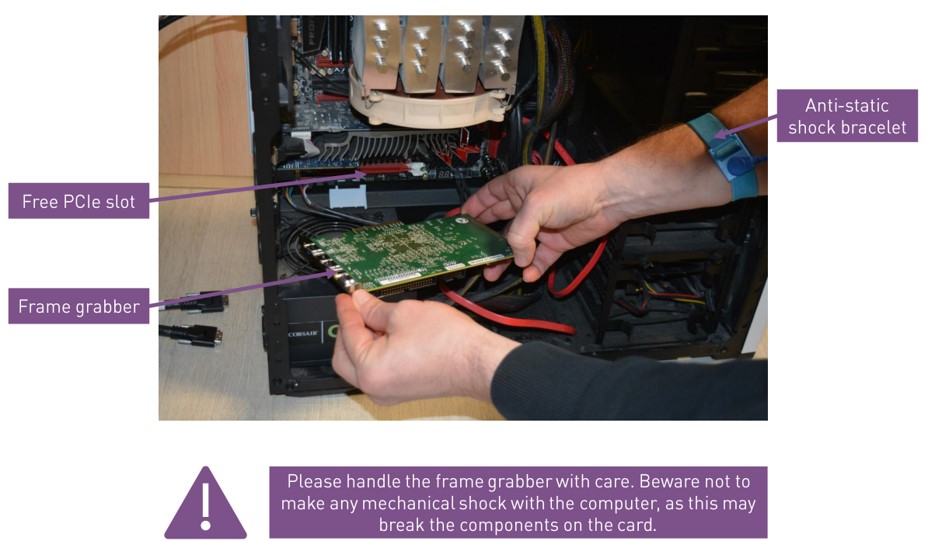

Free PCIe Slot Location

Place the New Frame Grabber

Fix the New Frame Grabber

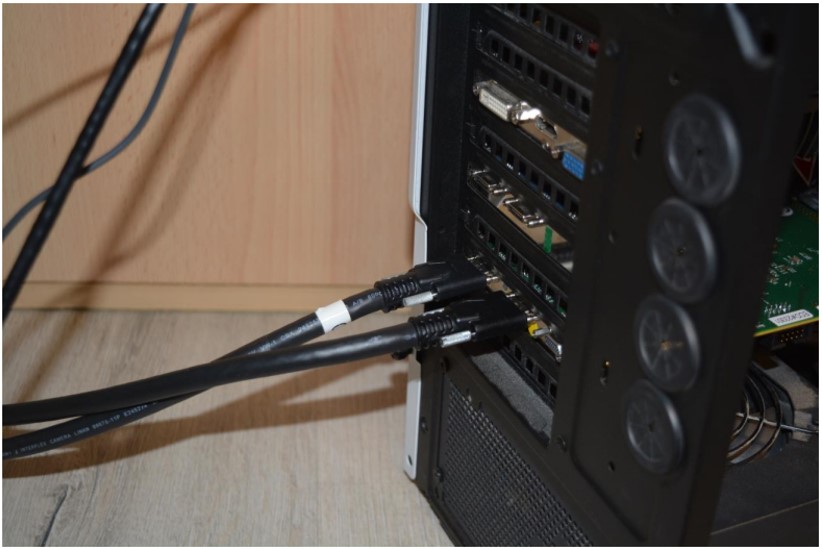

Connect the Cables

Ready to Go!

Date: June 2021

Author: Stephane Lemarchand

Category: Technical Article
