Microscope Cameras - sCMOS, EMCCD & CCD

Andor's range of high-performance microscope imaging cameras are suited to a wide variety of microscopy applications, from extremely challenging single molecule tracking to routine wide-field fluorescence microscopy of living or fixed cells.

Our extensive portfolio is characterised by outstanding imaging performance and ease of use, empowering customers to see more, faster, and to push the boundaries of science.

Request Pricing Product Selection Tool

sCMOS Microscope Cameras

Radically upgrade the performance of your fluorescence microscope with Andor sCMOS. Our large portfolio of multi-megapixel sCMOS cameras offers a solution for almost any application. Study the full dynamics of life from the ultra-fast processes of the cell, to development of the mature organism.

  • Preserve cell physiology: up to 95% QE
  • Capture cell dynamics: speeds up to 135fps
  • Be more productive: large sensor formats up to 32 mm
  • See the detail: exclusive camera-based super-resolution
Request Pricing Learn More
Dr. Kurt Thorn

The Andor Zyla (sCMOS) provides an impressive combination of field-of-view, sensitivity, resolution and speed.

Dr Kurt Thorn, UCSF, California.

EMCCD Microscope Cameras

Our market-leading range of EMCCDs cameras provides ultimate sensitivity coupled with speed. All back-illuminated models offer single photon sensitivity and > 95% QE. iXon is the platform of choice for an array of light starved microscopy applications and our '897' model boasts substantially more lab installations than any other EMCCD in the world.

  • Back Illuminated >95% QE​
  • TE Cooling to -100°C​
  • SRRF-Stream+ (Real Time Super Resolution)​
  • Fast Frame Rates - >56 fps​
  • UltraVac ™ Vacuum Technology
Request Pricing Learn More

The iXon (EMCCD) range of cameras have been incredibly reliable in our lab and have facilitated rapid, low noise imaging at relatively low laser intensities.

Prof. Mark Hollywood, Dundalk Institute of Technology, Ireland.

Cooled CCD Microscope Cameras

Andor's iKon-M 934 CCD offers ultra-low dark noise from exceptional vacuum cooling of the sensor and have been designed to deliver the highest sensitivity performance over long exposure acquisitions, making them ideal detectors for low light luminescence detection.

  • Large Field of View​
  • Up to 16.8 Megapixel​
  • Market-leading thermoelectric cooling to -100°C​
  • Back-Illuminated > 95% QE​
  • UltraVac™ Low Maintenance Operation
Request Pricing Learn More

The iKon CCD camera helps us obtain data more accurately and more conveniently. We can also do other important scientific research using protein interaction based BiFC and BiLC methods.

Libang Ma, Shanghai Institutes for Biological Sciences, China.

Microscope Camera Selection Tool

Try our camera microscope selector tool to select and compare products by application or technology. If you want to discuss the specific needs of your imaging experiments, you can contact one of our Andor Specialists.

iXon Life 888
iXon Life 897
Sona-11 (32 mm)
Sona-11 (22 mm)
Neo 5.5
ZL41 Cell 5.5
ZL41 Cell 4.2
iKon-M 934
Sona-6

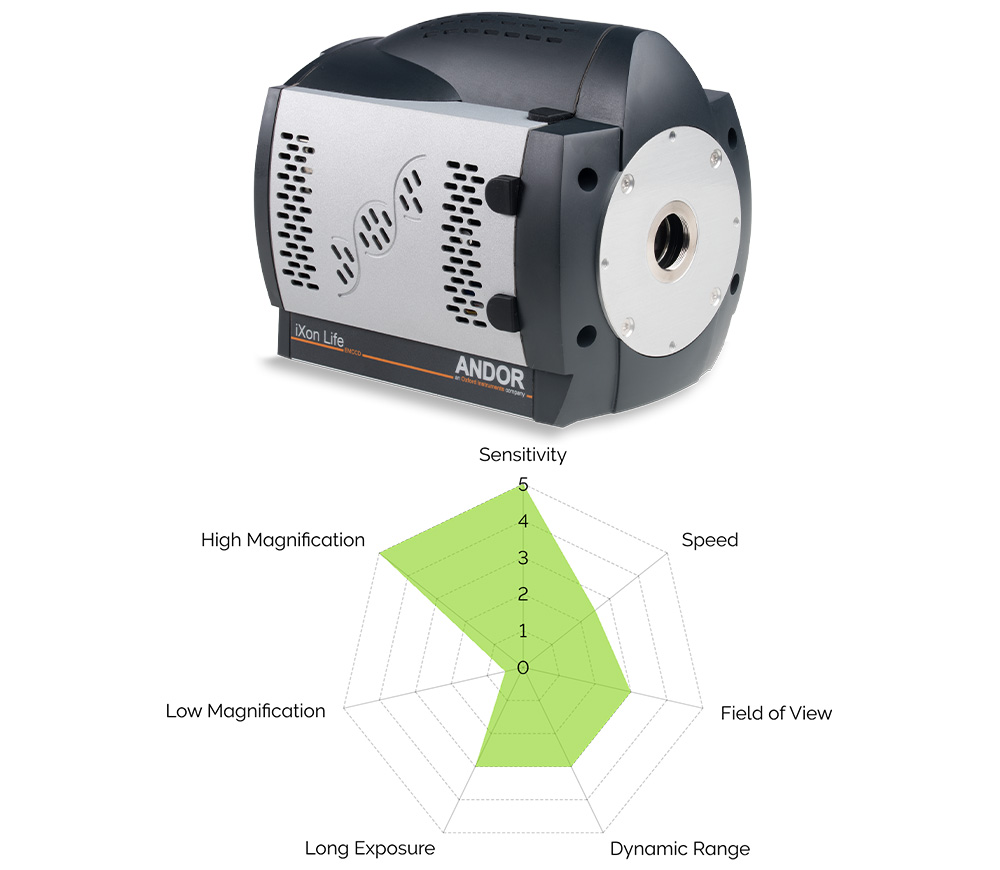

iXon Life 888 EMCCD

The world’s fastest megapixel back-illuminated EMCCD

iXon Life 888
Resolution (MP) - 1.0
Pixel Size (µm) - 13
Max. Frame Rate (fps) - 26
Cooling (°C) - -80
Max QE (%) - 97
Read Noise (e-) - <1
Request Pricing Specifications

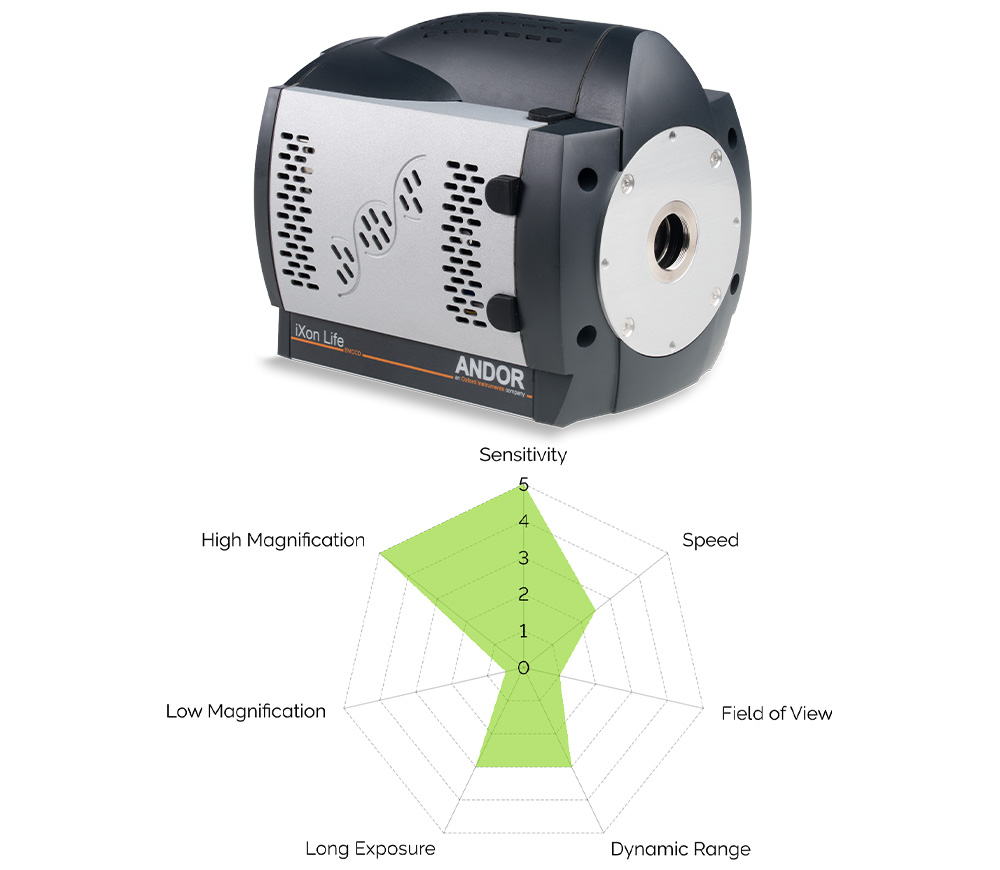

iXon Life 897 EMCCD

The world’s widest installed EMCCD - by far!

iXon Life 897
Resolution (MP) - .25
Pixel Size (µm) - 16
Max. Frame Rate (fps) - 56
Cooling (°C) - -80
Max QE (%) - 97
Read Noise (e-) - <1
Request Pricing Specifications

Sona-11 (22 mm)

World's Most Sensitive Back-illuminated sCMOS Camera

Sona 2.0 sCMOS
Resolution (MP) - 2.0
Pixel Size (µm) - 11
Max. Frame Rate (fps) - 70
Cooling (°C) - -45
Max QE (%) - 95
Read Noise (e-) - 1.6
Request Pricing Specifications

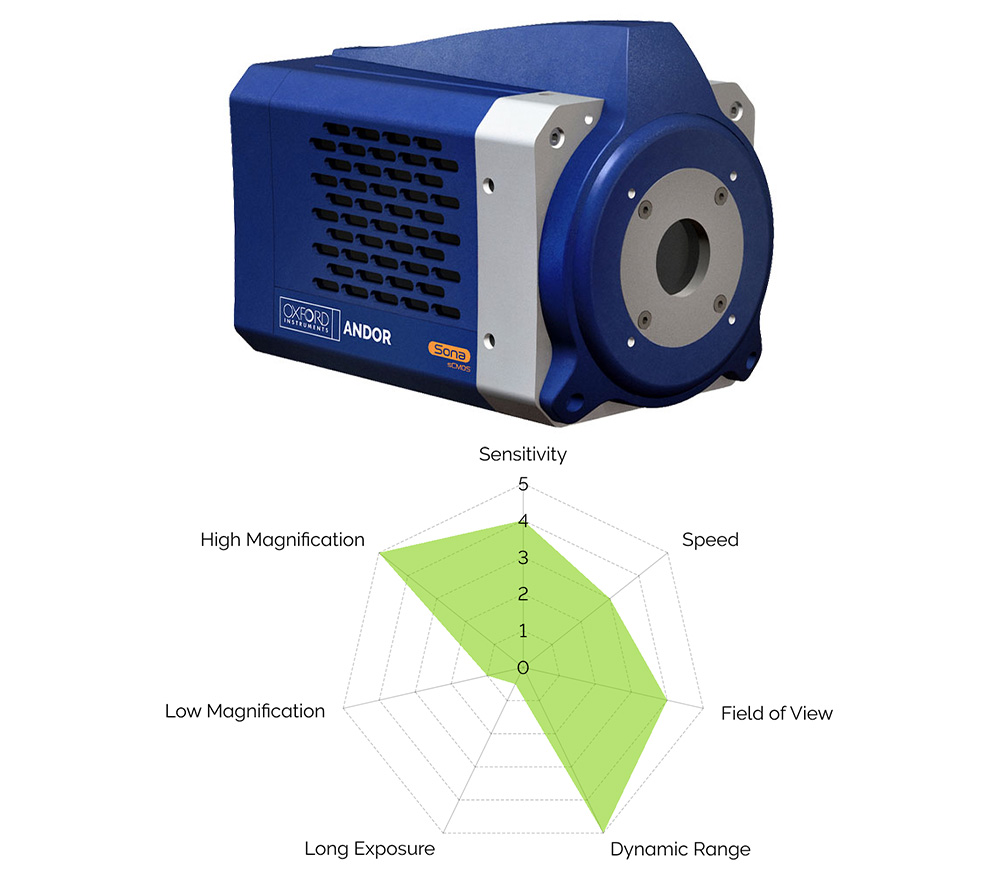

Sona-11 (32 mm)

World's Most Sensitive Back-illuminated sCMOS Camera

Sona 4.2 sCMOS
Resolution (MP) - 4.2
Pixel Size (µm) - 11
Max. Frame Rate (fps) - 48
Cooling (°C) - -45
Max QE (%) - 95
Read Noise (e-) - 1.6
Request Pricing Specifications

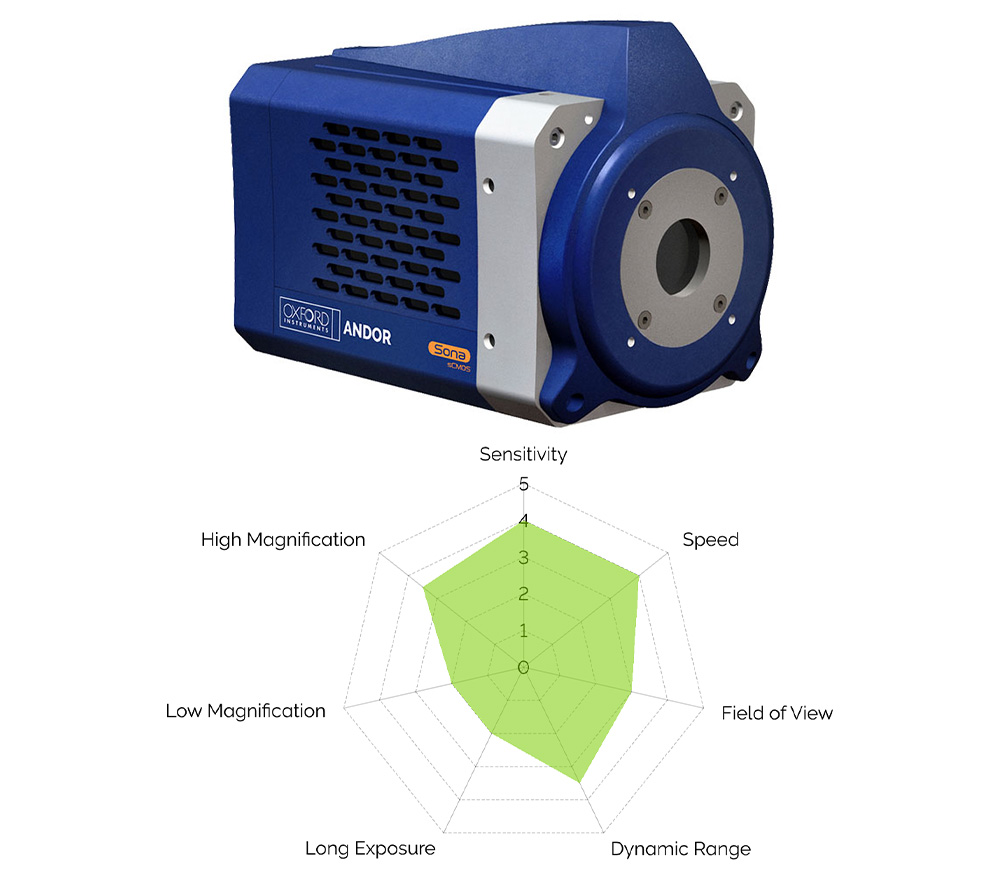

Sona-6

World's Most Sensitive Back-illuminated sCMOS Camera

Sona-6 sCMOS
Resolution (MP) - 4.2
Pixel Size (µm) - 6.5
Max. Frame Rate (fps) - 135
Cooling (°C) - -45
Max QE (%) - 95
Read Noise (e-) - 1.0
Request Pricing Specifications

Neo 5.5 sCMOS Camera

Deep vacuum cooled and true Global shutter

Neo 5.5 sCMOS
Resolution (MP) - 5.5
Pixel Size (µm) - 6.5
Max. Frame Rate (fps) - 30
Cooling (°C) - -40
Max QE (%) - 60
Read Noise (e-) - 1
Request Pricing Specifications

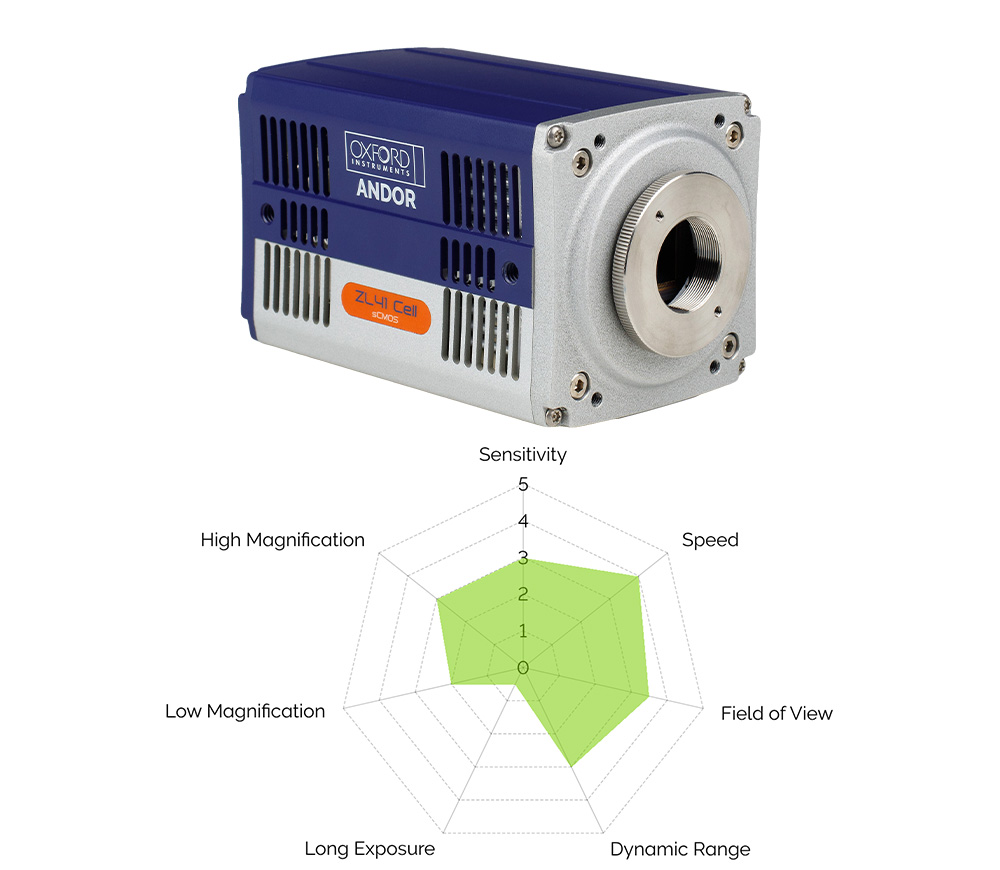

ZL41 Cell 5.5

Perfect upgrade - Rolling & true Global shutter

Zyla 5.5 sCMOS
Resolution (MP) - 5.5
Pixel Size (µm) - 6.5
Max. Frame Rate (fps) - 100
Cooling (°C) - 0
Max QE (%) - 64
Read Noise (e-) - 0.9
Request Pricing Specifications

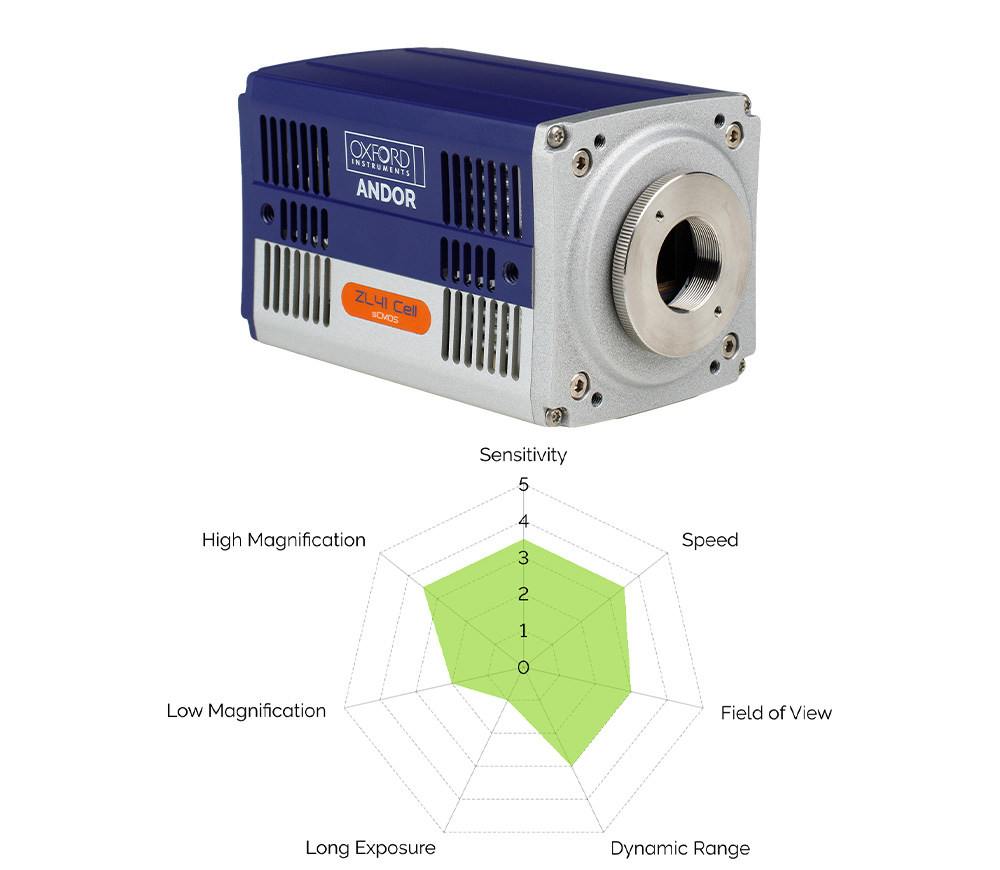

ZL41 Cell 4.2

Our most flexible and feature packed performance sCMOS

Zyla 4.2 sCMOS
Resolution (MP) - 4.2
Pixel Size (µm) - 6.5
Max. Frame Rate (fps) - 100
Cooling (°C) - 0
Max QE (%) - 82
Read Noise (e-) - 0.9
Request Pricing Specifications

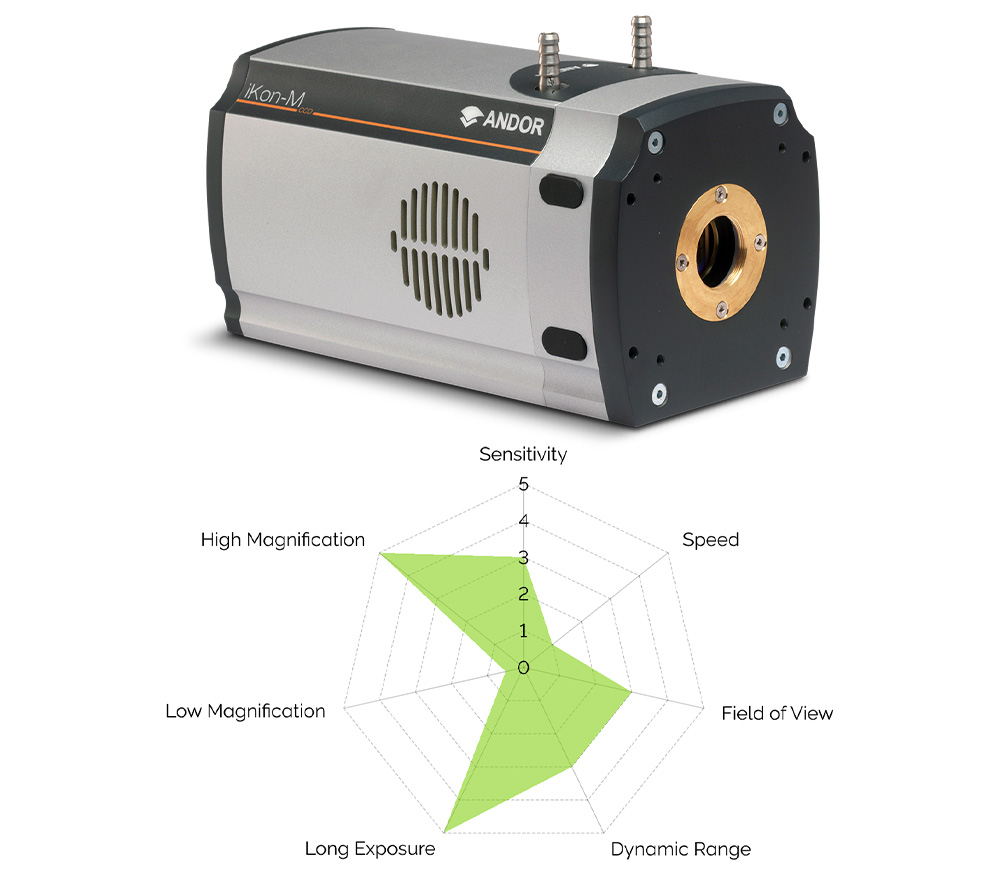

iKon-M 934 CCD Camera

The ultimate detector for low light luminescence

iKon-M 934
Resolution (MP) - 1.0
Pixel Size (µm) - 13
Max. Frame Rate (fps) - 4.4
Cooling (°C) - -100
Max QE (%) - 97
Read Noise (e-) - 2.9
Request Pricing Specifications
