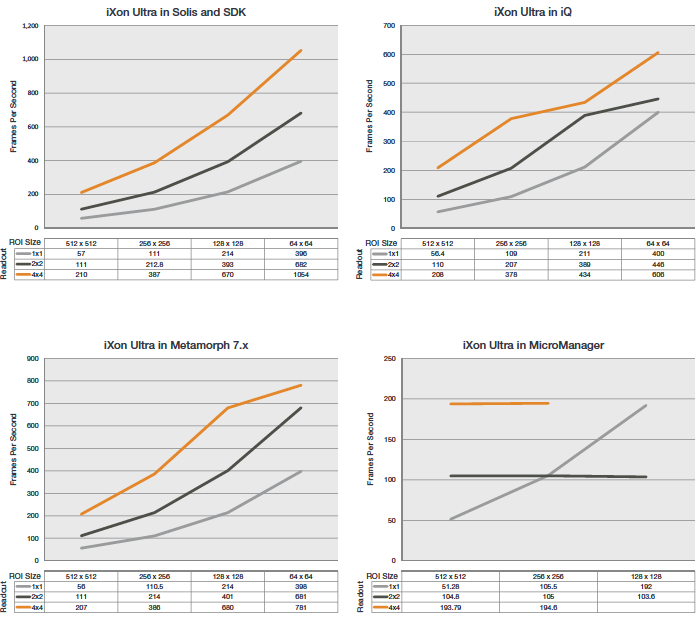

Andor camera top speeds are dependent on many parameters, including area of interest (AOI), read mode, binning and software interface. The graphs and tables below show camera performance across a range of software interfaces and certain levels of binning area's of interest.

Camera Frame Rates

  • Camera setup: 17 MHz, 0.3 µs vertical shift speed
  • Minimum exposure set
  • For fastest acquistion in iQ you must ensure that Frame-Stream and overlap are on, 'Display image during acquisition is turned off
  • ALL measurements performed using timestamps to verify the speed of acquisition

Camera Frame Rates

  • Camera setup: 560 Mhz, minimum exposure & overlap on
  • iQ Snap-stream, 'Display image' off
