SRRF Stream Super-Resolution Software

‘SRRF-Stream+’ is a NEW real time super-resolution microscopy functionality that operates exclusively on Andor’s iXon LifeiXon Ultra EMCCD cameras and Sona back-illuminated sCMOS cameras. Our new version is called SRRF-Stream+ and provides even better image quality with all the benefits of the original SRRF-Stream.

NEW SRRF-Stream+ Super-Resolution now available on Sona back-illuminated sCMOS!

  • Real Time – enhanced workflow, avoids post-processing. View in ‘Live Mode’.
  • Low Excitation Intensities (mW-W/cm2) – prolonged live cell observations and accurate physiology.
  • Conventional Fluorophores, e.g. GFP – simple labelling, no photo-switching required.
  • Live Cell Dynamics – full FOV super-res images every 1-2 secs. > 10 fps using ROIs.
  • Cost-Effective – convert conventional fluorescence microscopes to super-resolution microscopes.
Request Pricing SRRF-Stream+ Technical Note

SRRF-Stream Comparison

Cardiomyocytes

Desmin labelled in cardiomyocytes imaged with a Zeiss Widefield microscope at 60x and Sona 4.2B-6 camera with and without SRRF-Stream+ applied. Images courtesy of Matt Caporizzo, Prosser Lab, Philadelphia, USA.

Mitochondria

Image comparison of a fluorescently labelled BPAE cell, recorded with a widefield fluorescence microscope and a SRRF-Stream enabled iXon Life 888 EMCCD camera. A x63 objective was used, with further 2x magnification and 560nm illumination. 100 raw ‘input’ images were recorded for every resultant super-resolution image, resulting in a super-resolution image rate of 0.5 Hz. For a fair comparison without SRRF-Stream, 100 standard widefield images were recorded and then averaged. While the original image was of a larger field of cells, a zoomed ROI of one cell is shown here in order to more easily display a line intensity profile comparison through a small region. The improvement in resolving power is readily apparent.

SRRF vs SIM

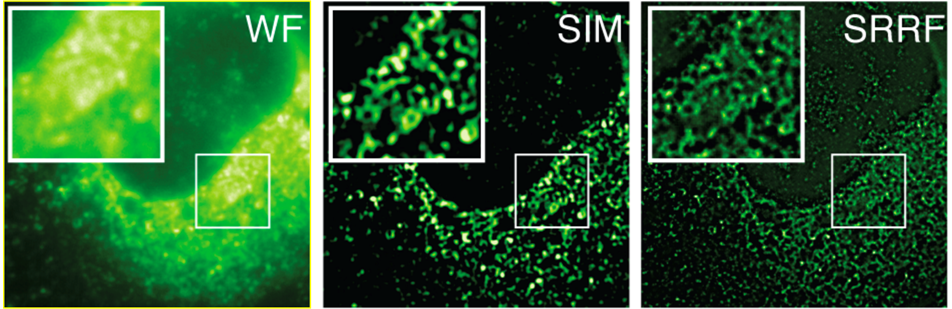

HCV infected cells stained with anti-NS5A. Here we are comparing Widefield (WF), Structured Illumination Microscopy (SIM) and SRRF images (SRRF of the widefield image). The images are of the same field of cells, recorded on the same microscope, using identical objective and optical path. The only difference being that SIM was recorded using an sCMOS detector with 6.5µm pixels whereas the Widefield and resultant SRRF was recorded using an iXon EMCCD detector with 16 µm pixels. The superior resolving power of SRRF is evident, indicative that SRRF is achieving a greater than 2-fold improvement over the classical diffraction limit. SIM is theoretically limited to a 2-fold reduction of the classical diffraction limit. Sample courtesy of the Grove lab at UCL.

Cytoskeleton

F-actin of BPAE cells labelled with Alexa Fluor 488 Phalloidin imaged on a Nikon Ti2 microscope at 60x and Sona 4.2B-11. The image taken from the average of 100 frames compared against the SRRF-Stream+ image. Images courtesy of Motosuke Tsutsumi, Research Institute for Electronic Science, Hokkaido University and National Institutes for Physiological Sciences, Aichi, Japan.

BCS-40 Membrane

200s time-lapse of a live BSC-40 cell labelled with cell mask and imaged with 635nm LED illumination. The first 100 frames correspond to widefield imaging with a 1 second exposure; the second 100 frames correspond to SRRF-Stream imaging where each frame is produced from SRRF-Stream processing of 50 images (20ms exposure time). Sample preparation by David Albrecht (Ricardo Henriques and Jason Mercer labs at UCL).

Clathrin Pits

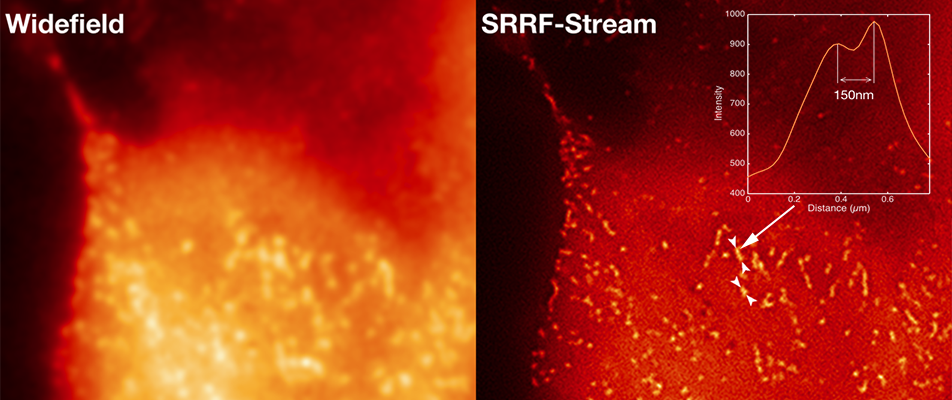

Comparative images of Clathrin coated pits of live HeLa cells, labelled with mCherry, recorded on a widefield microscope at 2 FPS. 100 raw ‘input’ images were recorded for every resultant super-resolution image, resulting in a super-resolution image rate of 2 FPS. A line intensity profile is shown through a small region of the SRRF-Stream image, indicating resolution of structures that are 150nm apart. Sample preparation by Caron Jacobs (Ricardo Henriques and Mark Marsh labs at UCL).

Yeast



Comparative 3D projection montages of fission yeast lifeAct expressing strain. Recorded with standard widefield versus SRRF-Stream widefield, using identical exposure times. Strain courtesy of Mohan Balasubramanian’s laboratory (U. Warwick) Sample courtesy of Gautam Dey (Buzz Baum laboratory at UCL).

Blood

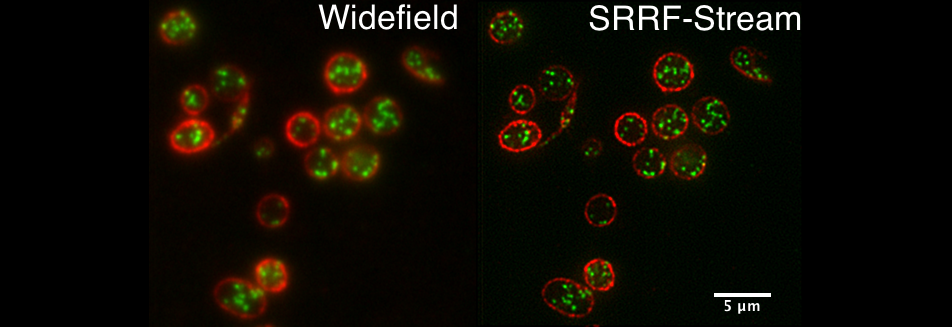

Comparative standard widefield and widefield SRRF-Stream images of blood platelets, red membrane, green internal granules. Sample courtesy of Cutler laboratory at UCL.

Tubulin



A still widefield image of a live HeLa cell expressing tubulin-GFP followed by a SRRF-Stream time-lapse of the same region at 1fps (SRRF-Stream analysis of 50 frames at 20ms exposure). Sample preparation by David Albrecht (Ricardo Henriques and Jason Mercer labs at UCL).

SRRF-Stream+ Applications

With its ability to smash through the classical diffraction limit, and furthermore, to accomplish this in real time, with non-complex sample labellingconventional equipment and with low intensity illumination, SRRF-Stream paves the way to unlock previously unseen cellular structure and behaviour, at unprecedented spatio-temporal resolution in a low-photodamage friendly manner.


Observational Capabilities of SRRF-Stream

  • Elucidation of protein structure analysis at a sub-organelle level
  • Tracking of single molecules inside cells
  • Using this tracking to gain insight into individual molecular machinery underpinning cellular physiology
  • With this new information, update models of cell function

Applications of SRRF-Stream

  • Membrane fusion involving individual SNARE protein machinery
  • Dynamic changes of and within synaptic vesicles
  • Dendritic spines reformation due to synaptic plasticity and learning
  • Signal transduction processes and cell-to-cell communication and differentiation


SRRF-Stream+ Workflow Advantage

Adopting the recently developed SRRF technology from the lab of Dr Ricardo Henriques, University College London (UCL), and working in close collaboration with Dr Henriques, Andor have enhanced the technology for optimal performance on SRRF-Stream enabled cameras. Andor are also expert in advanced GPU processing optimization techniques, employed in this instance to execute the SRRF algorithm up to 30x faster than the existing ImageJ-based post processing implementation of SRRF (NanoJ-SRRF). This significant acceleration enables workflow enhancement, by allowing data acquisition and SRRF processing to operate in parallel.

Processing Speed Comparison - SRRF Stream vs NanoJ-SRRF

  • Input image pixels - 1024 x 1024
  • # input images per SRRF image - 100
  • Output SRRF pixels - 4096 x 4096
  • NVidia GTX 1080 GPU card
Andor SRFF Stream Chart

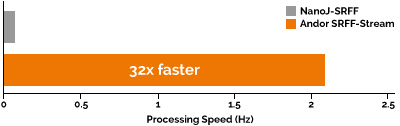

This graph compares the rate of processing of blocks of 100 raw input images (1024 x 1024 pixels), to yield resultant SRRF super-resolution images of 4096 x 4096 pixels. SRRF-Stream is compared to NanoJ-SRRF, the processing occurring on the same Nvidia GTX 1070 GPU card. The SRRF-Stream acceleration subsequently allows data acquisition and processing to happen in parallel, yielding a further workflow improvement over NanoJ-SRRF.

Since processing is now much faster than the camera can acquire data, ‘SRRF-Stream enabled’ cameras now accomplish real time super-resolution, with large field of view super-resolution images.

Having thoroughly tested SRRF-Stream in our own lab, we are very impressed by both the workflow and also the ability to now utilise larger fields of view for live cell super-resolution. By seamlessly combining the SRRF algorithm with the high-performance of the iXon, we have accomplished the world’s first super-resolution camera for fluorescence microscopy.

Dr Ricardo Henriques
Quantitative Imaging and Nanobiophysics Group, UCL

SRRF-Stream+ Accessibility

What do I need to access SRRF-Stream?

  • A SRRF-Stream+ compatible iXon Life/iXon Ultra EMCCD or Sona back-illuminated sCMOS
  • SRRF-Stream+ license and installer
  • A CUDA-compatible NVidia GPU card*
  • MicroManager(64-bit) software or Andor SDK (64-bit)
  • OPTIONAL: PC Workstation - Pre-installed with a recommended and tested GPU card, alongside SRRF-Stream+ enabled MicroManager (linked to the serial number of your Andor camera) and Andor SDK with SRRF-Stream+.

* The Nvidia GPU card should have Compute Capability v3.0 or above and 4GB or greater on-board GPU RAM for iXon, 8GB for Sona. Note that Andor have tested ‘mid-range’ cards such as the GTX 1070 and found that, with SRRF-Stream+, this level of card can process data much faster than the rate of camera data acquisition.

Can I upgrade my camera to SRRF-Stream+?

Yes you can upgrade your iXon (Ultra and Life EMCCD) or Sona back-illuminated sCMOS cameras to unlock SRRF-Stream+ super-resolution microscopy capability.

  • Provide your serial number in the upgrade request form
  • Sales engineer will advise on PC and GPU requirements
  • Place an order
  • Receive SRRF-Stream+ upgrade package: installer, license (specific to your camera serial number), latest camera drivers and SRRF-Stream+ user guide

PLEASE NOTE: If upgrading an iXon 888 model, you also need to request the SRRF-Stream Camera Optimization process. You can also upgrade from original SRRF-Stream to the latest SRRF-Stream+.

MicroManager Integration

In order to make SRRF-Stream+ widely accessible, it has been fully integrated into MicroManager(64-bit) open source microscopy software platform.

  • Outputs real time super-resolution images in Live Mode
  • Multi-dimensional - Integrated with Multi-channel, Z-stack and Time-series acquisitions
  • SRRF-Stream parameters readily adjustable alongside other camera parameters through ‘Device Property Browser
