Andor’s Scientific CMOS camera portfolio for Life and Physical Science research delivers advanced performance features that render them ideal for high fidelity, quantitative scientific measurements. Providing a range of application advantages Andor’s multi-megapixel sCMOS cameras offer large field of view and high resolution, without compromising on read noise, dynamic range or frame rates.
sCMOS Camera Features include:

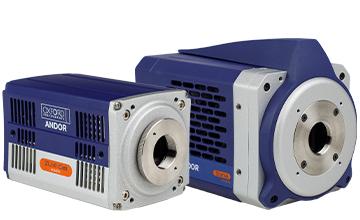

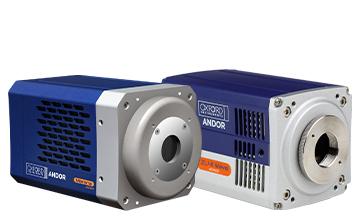

Model | Marana | ZL41 Wave | iStar | Zyla HF | CB2 | ZL41 Cell | Sona |
Sensor Format | 2048 x 2048 |
2048 x 2048 2560 x 2160 |
2560 x 2160 | 2560 x 2160 | 5328 x 4608 |
2048 x 2048 2560 x 2160 |
1410 x 1410 2048 x 2046 2048 x 2048 |
Sensor Diagonal (mm) | 31.9 | 18.8 - 31.9 | Ǿ18/25mm intensifiers | 21.8 | 19.3 | 18.8 - 21.8 | 18.8-31.9 |
Pixel Size (µm) | 6.5 - 11 | 6.5 | 6.5 | 6.5 | 2.74 (5.48 binned) | 6.5 | 6.5-11 |
QE max (%) | 95 | 64 - 82 | Up to 50% (Gen3 intensifier) | 64 | 74 | 64 - 82 | 95 |
QE Profile Options | BV, BU | FI | Intensifier dependent | FI | N/A | FI | BV |
Cooling (°C) | -45 | -5 | 0 | -5 | -20 | -5 | -45 |
Exposure (Shutter) Modes | Rolling | Rolling and Global | Global | Rolling and Global | Global | Rolling and Global | Rolling |
Max. Frame Rate (fps, full array) | 48 - 135 |
100 (CameraLink) 40 - 53 (USB 3.0) |
50 |
100 (CameraLink) 40 (USB 3.0) |
74 (12-bit) |
100 (CameraLink) 40 - 53 (USB 3.0) |
43-135 |
Read Noise Median (e-) | 1.0 - 1.6 |
0.9 (Rolling) 2.3 (Global) |
2.3 (< 1 with Gain) |
0.9 (Rolling) 2.3 (Global) |
1.3 |
0.9 (Rolling) 2.3 (Global) |
< 1.0 - 1.9 |
Pixel Well Depth (e-) | 55,000 - 85,000 | 30000 | 30000 | 30000 | 9500 | 30000 | 42,000 - 85,000 |
Fast shuttering capability | N/A | N/A | Yes (< 2 ns) | N/A | Yes (88 µs) | N/A | N/A |
Indirect X-ray & Neutron detection | Lens coupled | Lens coupled | N/A | Fiber-optic coupled | Lens coupled | Lens coupled | N/A |
Interface |
USB 3.0 (4 Lane CXP-6) |
USB 3.0 Camera Link |
USB 3.0 |
USB 3.0 Camera Link |
CoaXPress 4.0, GigE Vision |
USB 3.0 Camera Link |
USB 3.0 CoaXPress |
Applications | Physical Science | Physical Science | Physical Science | Physical Science | Life & Physical Science | Life Science | Life Science |
Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | |
Pricing | Pricing | Pricing | Pricing | Pricing | Pricing | Pricing |
