Time-Resolved X-ray Diffraction

Evolution of atomic and molecular structure

In recent years a new method has been developed to study the time evolution of atomic and molecular structure on the time scale of 100 femtosecond (1fs=10-15s), which is the typical time scale for atomic vibration. This method will give new insights of the temporal evolution of physical, chemical and biological processes on the atomic scale. New developments, such as new X-ray sources, femtosecond lasers, and X-ray optics, were essential for this study. But without new detector development in the keV-photon range such experiments are not possible. A combination of a toroidally bent crystal optics with a CCD camera can provide the simultaneous measurement of transient crystal diffraction curves [1].

Time-Resolved X-ray diffraction using a pulsed femtosecond X-ray source at Institut für Optik und Quantenelektronik, in Jena

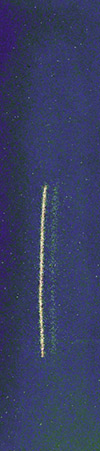

Fig. 2a.

A typical set up for Time-Resolved diffraction is shown in Fig. 1. The interaction of short intense laser pulses (t =100 fs, I >1015 W/ cm2) with solid matter creates a thin dense plasma layer where electrons can be efficient accelerated to keV or even MeV energies. Such electrons can produce short X-ray pulses when interacting with a solid. The X-ray source is slightly larger than the laser focus, typically produced some tens of micrometers. Intense line radiation from the laser based X-ray source, like Kα lines, are being focussed with toroidally bent crystals onto the samples which are investigated. Then a spherical monochromatic wave is falling on the sample. The diffracted X-ray signal from the sample (Fig. 2a) is recorded by an Andor back-illuminated, deep depletion X-ray CCD camera, a DX420-BR-DD with 1024 x 255 pixels, providing the rocking curve in the case of a single crystal sample (Fig. 2b). Excitation of the sample by a second laser pulse with a certain delay before the X-ray probe pulse, allows researchers to follow the temporal response of the diffraction signal by varying the delay of both pulses [2].

. 1. Time-Resolved X-ray diffraction setup

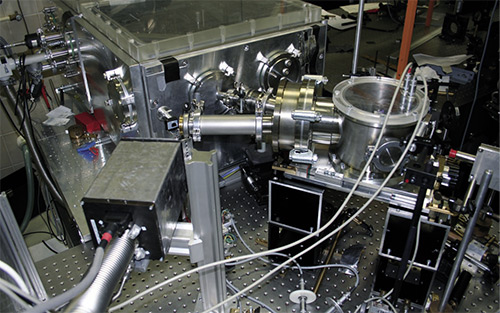

Fig. 1. Time-Resolved X-ray diffraction setup

Properties of X-ray CCD cameras

Important properties of back-illuminated deep depletion CCDs have the following advantages compared to other X-ray detectors [3]:

  • Accumulation of photons over various exposures (typically 1 s - 1,000 s) due to the camera’s low sensor temperature.
  • Detection of single photon events in the keV-photon- energy range. More then 250,000 single solid state detectors, each pixel, record simultaneously the signal.
  • High detection efficiency, more than 90% for 4.5 keV photons.
  • Retain excellent linearity between photon energy and detected charge
  • The photon energy can be reconstructed, even if the charge of one photon is split into four pixels
  • The CCD cameras can be used in a vacuum experiment as well as in small flexible vacuum housings (see Fig. 1)
  • Relatively low mass, easily translated and rotated.

Application for Time-Resolved experiments

Time-Resolved experiments require significant properties of the detectors to record successfully reasonable data. One of the most important parameters for these experiments is the time average X-ray photon flux. A high detection efficiency reduces the extremely high cost for a high average power of the femtosecond laser driving the X-ray source.

X-ray CCDs are applied in various steps of these experiments:

  • As a recording X-ray spectrometer in the single photon counting mode (line spectra and Bremsstrahlung), for laser based X-ray source optimization
  • With CCDs, online alignment of the X-ray optics (i.e. toroidally bent crystals) can be completed, for example, Bragg angle rotation, crystal azimuth rotation and focus alignment.
  • Crystal rocking curves, transient or static, are recorded from crystal samples (Fig. 2 (b)).

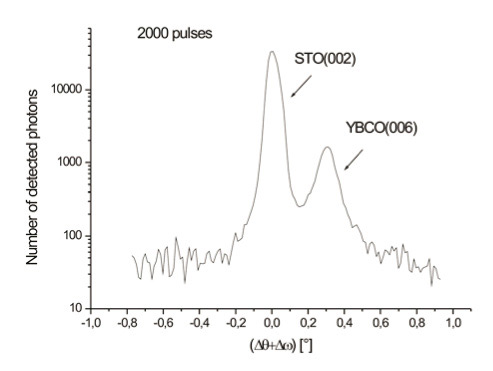

Fig. 2 (b). A single crystal rocking curve

Fig. 2 (b). A single crystal rocking curve

Advantages for data analysis using back-illuminated deep depletion X-ray CCD cameras are:

  • Diffracted single photons can be located with a precision of one pixel. This corresponds to an angular resolution of typical 0.5 arcminute in diffraction experiments.
  • The background level given by the CCD temperature can be subtracted relatively easily.
  • Scattered hard photons not contributing to the diffracted signal, but disturbing the measurement can be easily removed if single photon counting mode is used.
  • The reconstruction of the rocking curve from the two-dimensional CCD image (Kossel cone in Fig. 2a).
  • Ability to record large solid angles diffracted by the samples due the large detector area.

With thanks to:

I. Uschmann, Institut für Optik und Quantenelektronik, Friedrich-Schiller-Universität Jena, Germany

1. Ch. Rischel, et al., Nature 390, 490 (1997).
2. A. Morak, et al. , Phys. Stat. Sol., No. pssb.200642387, (2006).
3. F. Zamponi, et al., Rev. Sci. Instrum., 76, 116101 (2005).
