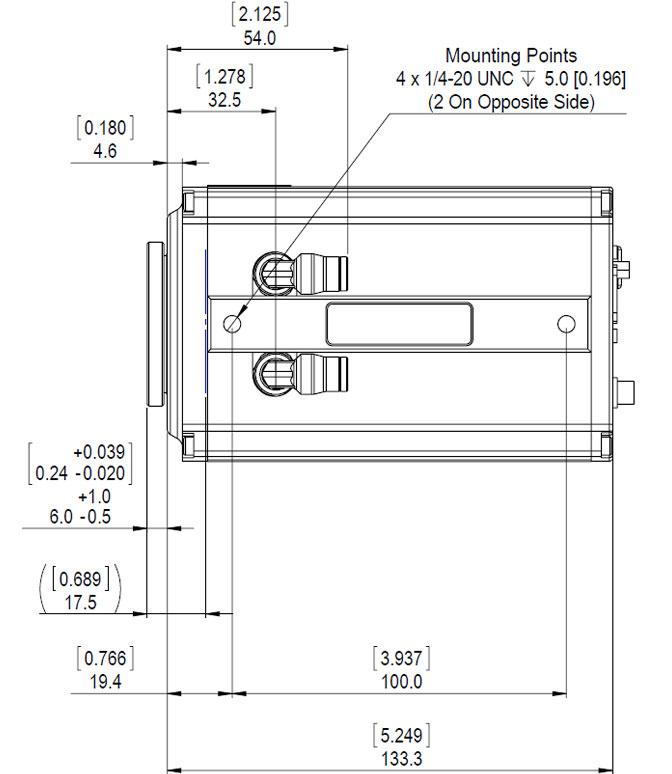

Zyla 4.2 & 5.5 sCMOS - Water Cooled Drawings

Notes

1. Water taps accept 6mm water pipe. 2 x water adapters also supplied to accept 1/4" hose..
2. Please leave 70mm minimum for the bend radius of the USB3 cable
