Rear Panel

The rear panel of both USB 3.0 and Cameralink models is shown below.

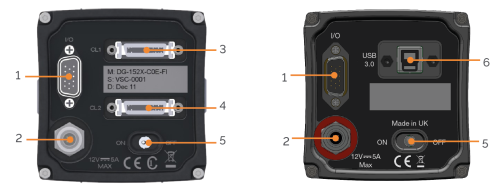

Zyla Back Plate Connections (Left) Cameralink versions (Right) USB 3.0 version

  1. I/O 15-Way D Type Connector

  2. 12V DC Power Connector, see Power Supply Information for more information.

  3. CL1 connector, this is the connection for the 3-tap (single cable) Camera Link version of the Zyla camera.

  4. CL2 connector, this connection is required for the full 10-tap (double cable) Camera Link version of the Zyla 5.5 and Zyla 4.2 camera and is not present on the Zyla 5.5 3-tap version.

  5. On/Off Switch

  6. USB 3.0 Connector, this is the connection for the USB 3.0 version of the Zyla camera. It is not present on the Camera Link versions.

Multi I/O Timing Cable Pin Outs

Multi I/O Timing Cable Pinouts 15-way D type connector

1 ARM 9 Reserved
2 AUX_OUT_1 10 Reserved
3 FIRE n 11 Reserved
4 FIRE 12 Reserved
5 AUX_OUT_2 13 Reserved
6 Ground 14 Reserved
7 External Trigger 15 Reserved
8 Spare (I)

  • External Trigger and Spare input are 5 V TTL input. By default they trigger on a rising edge.

  • Fire, Fire n, Arm, AUX_OUT_1 and AUX_OUT_2 outputs are all TTL timing outputs (please also refer to Impedance Information for information on impedance matching)

  • TTL I/O can be individually inverted via software (e.g. Solis or SDK)

  • Pins 9 to 15 are reserved and should not be used.

  • AUX_OUT_1 supplies the ‘FIRE ALL’ output by default. This is the logical AND of the FIRE pulses associated with Row #1 and Row #n (the last row read out in the image frame). Therefore the FIRE ALL pulse represents the time within a frame when all rows on the sensor are simultaneously exposing.

  • AUX_OUT_1 is also configurable as FIRE, FIRE n and FIRE ANY. The FIRE ANY pulse represents the time within a frame when any row of the image frame is exposing. Refer to Trigger Modes for the behaviour of these signals and to the SDK3 manual for configuring the AUX_OUT_1 output.

    Note
    This configurable output is only available on cameras with FPGA version numbers ≥ 20120802 and Solis versions ≥ 4.22.30001.0 (SDK users require version ≥ 3.5.30001.0).

  • AUX_OUT_2 output is reserved for future use.

  • I/O Timing Interface cable (Andor part number ACC-ACZ-05612) gives access to all of the above I/O functions (excluding Ground and Reserved).

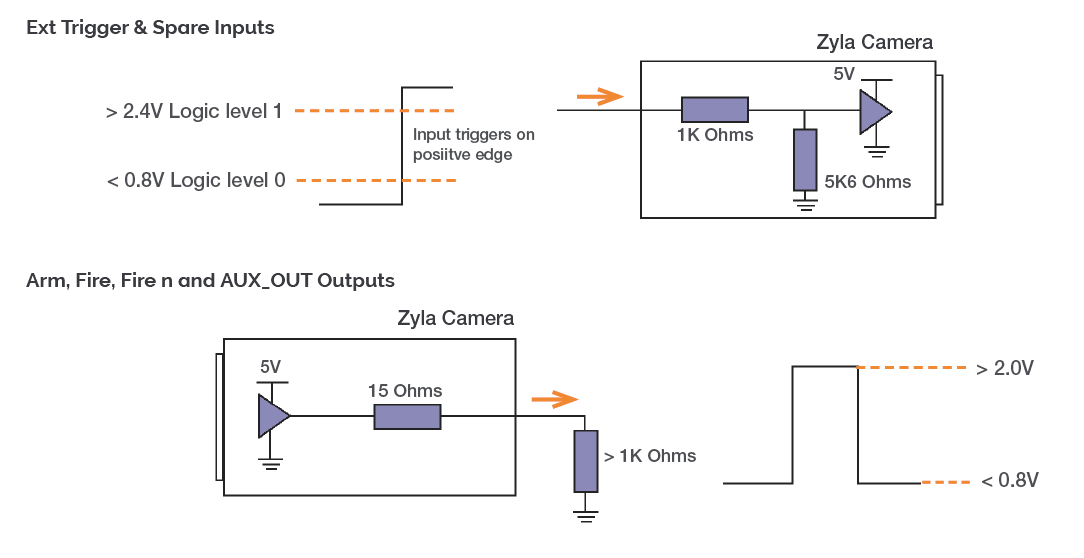

Impedance Information

Zyla connection impedance information
