Power Supply Information

BCU External AC/DC Power Supply Requirements

	BCU
Supplied EPS	PS-10
Mains Input	100 – 240 VAC, 50 – 60 Hz
Low Voltage Supply Input	12 V
Low Voltage Supply Current	2.08 A
Low Voltage Supply Cable Plug	Standard DC coaxial connector with 2.1 mm inner diameter and 5.5 mm outer diameter (a.k.a. P1J)

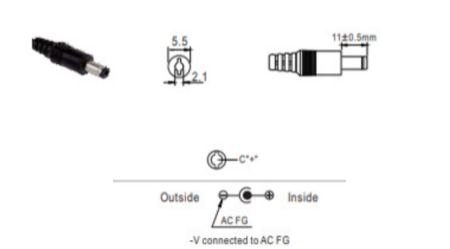

Low Voltage Supply Cable Plug Insertion View
Low Voltage Supply Product Socket	CUI Devices, PJ-005A, power barrel connector jack 2.00 mm ID (0.079”), 5.50 mm OD (0.217”) panel mount, through hole

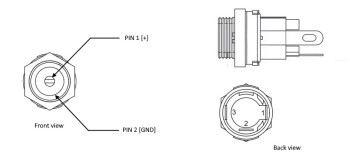

Low Voltage Supply Product Socket Insertion view
Ripple	100 mV peak-to-peak
Safety	Certified to IEC 62368-1 in accordance with local safety regulations and meets the reinforced insulation from mains requirement of IEC 61010-1
Environmental	Ensure that the EPS meets the environmental specification of the overall product
