External Power Supply Specifications
HLE-FL1 External AC/DC Power Supply Requirements
| High Power Laser Engine | |
|---|---|
| Supplied EPS | Andor PS-13 |
| Low Voltage Supply Input | 12 V +/- 5% |
| Low Voltage Supply Current | 11.5 A |
| Low Voltage Supply Cable Plug |
Hirose JR13WCC-6(72) Black connector cable clamp M16x0.75 Hirose RM15WTPZ-2S(71) 2POS circular connector plug, female |

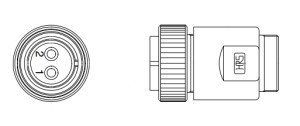

| Low Voltage Supply Cable Plug Insertion View |
|
|
Low Voltage Supply Pin Connections |
Pin 1 +12 V, Pin 2 GND |
| Low Voltage Supply Product Socket | Hirose RM15WTRZB-2P(71) 2-pin power connector |
| Low Voltage Supply Product Socket Insertion view |
|
| Ripple | 80 mV peak-to-peak |
| In-rush Current Capability | Shall start up a load whose in-rush current from a 0.1 Ω source resistance is 1.7 A min. peak and a pulse width of 10 ms min. measured at half the peak |
| Safety | Certified to IEC 62368-1 in accordance with local safety regulations and meets the reinforced insulation from mains requirement of IEC 61010-1 |
| Environmental | Ensure that the EPS meets the environmental specification of the overall product |
| EMC Ferrite | Fitted |
