Using Lens Mount Adaptors

The Zyla has a T-mount thread as standard. There are 3 standard lens mount adaptors available that can be specified at the time of ordering, enabling the Zyla to suit standard mounting options. These are as follows:

  • C-mount

  • CS-mount

  • F-mount

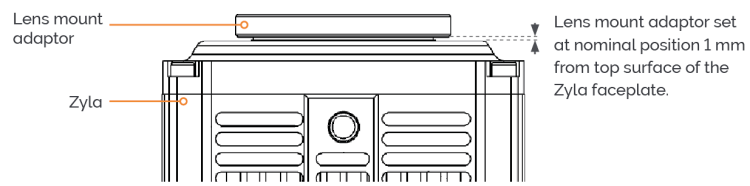

The Zyla is supplied with the selected lens mount adaptor locked into a nominal position of 1 mm from the top surface of the Zyla faceplate. Adaptors can be removed, inserted and adjusted (for focus optimization) as required

Lens mount adaptor fitted to Zyla (In this example a CS-mount adaptor is shown).

C-mount or CS-Mount Adaptor

The C-mount adaptor can be adjusted as follows:

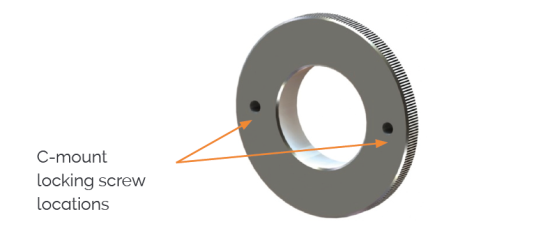

  1. Loosen the 2 locking screws located in the front face of the adaptor if required using supplied 1.5 mm Allen key.

    C-mount adaptor

    CS-mount adaptor

  2. Manually screw the C-mount into position until the desired focus is achieved. It must not be screwed the entire way into the faceplate.

  3. Lock the C-mount into position using the 2 locking screws and 1.5 mm hex key.

Note
Maximum torque applied must not exceed: 0.6 Nm

F-mount Adaptor

The F-mount should be screwed into the camera faceplate by hand.

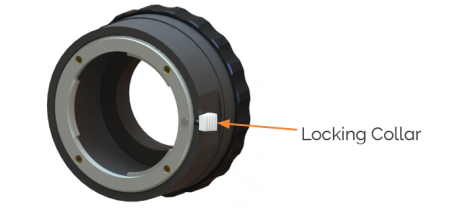

F-mount adaptor

  1. Manually screw the F-mount adaptor until the desired focal position is achieved.

  2. Manually tighten the collar down to the camera faceplate to lock the mount in position.
