Rolling Shutter Internal Triggering (Overlap Mode)
Internal Triggering in Overlap Mode allows the user to perform an exposure and acquire images from the sensor simultaneously. This is achieved by starting a new exposure for a new frame while the current frame’s exposure is being read out from the sensor.
When the required exposure time is less than the time it takes to read out a frame (Short Exposures), the cycle time is always defined by the time taken to read out a frame + 1 Row time. See below.
Internal Triggering “short” (overlap)
When the required exposure time is greater than the time it takes to read out a frame (Long Exposures), the cycle time is defined by the Exposure time +

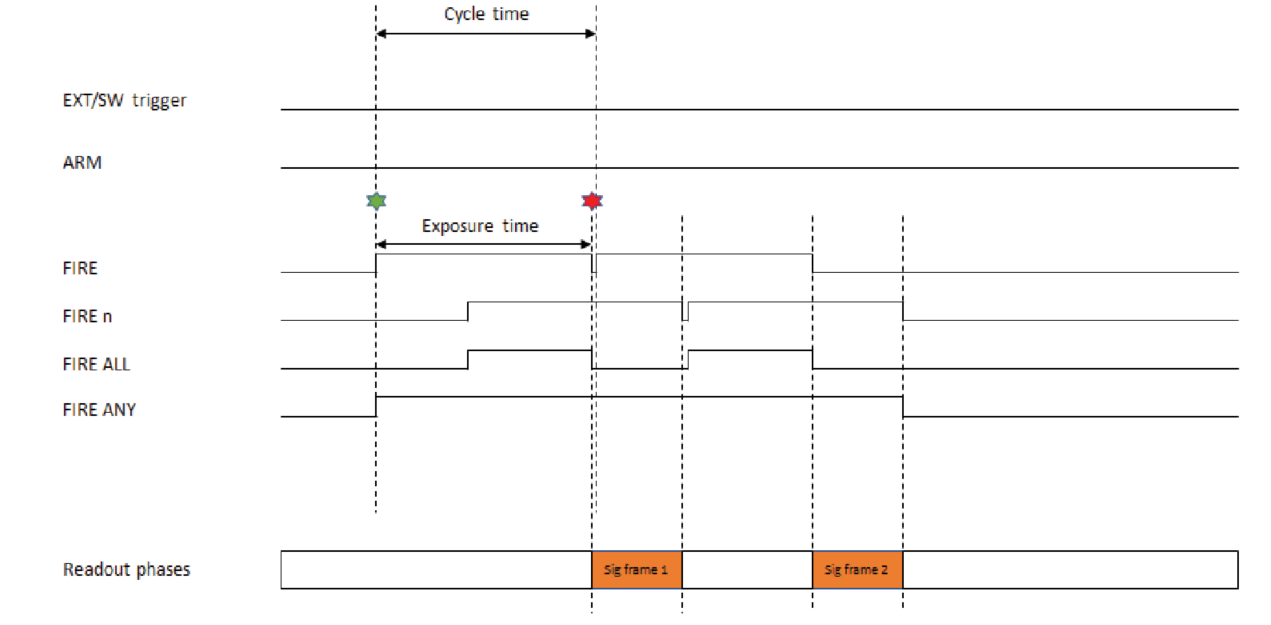

Internal Triggering “long” (overlap)
| Parameter | Minimum | Maximum |
|---|---|---|
| Exposure |
|
|
| Cycle Time (1/Frame Rate) |
Short Exposure: 1 Frame + 2 Rows Long Exposure: Exposure + 2 Rows |
|
| FIRE Any low period |
|
|
