Connecting the Camera to the PC

The camera connects to a PC via USB 3 or via CoaXPress that provides a standard, robust and high-speed connection with the control PC. It is recommended to use the supplied PCle card as this will ensure consistent performance. Other ports on the PC may share bandwidth with other devices and peripheral components. This may cause reduced, or inconsistent performance.

Installing the USB 3 Card or CXP Card in the PC (if required)

Note
Camera operation with PCIe cards not supplied by Andor cannot be guaranteed.

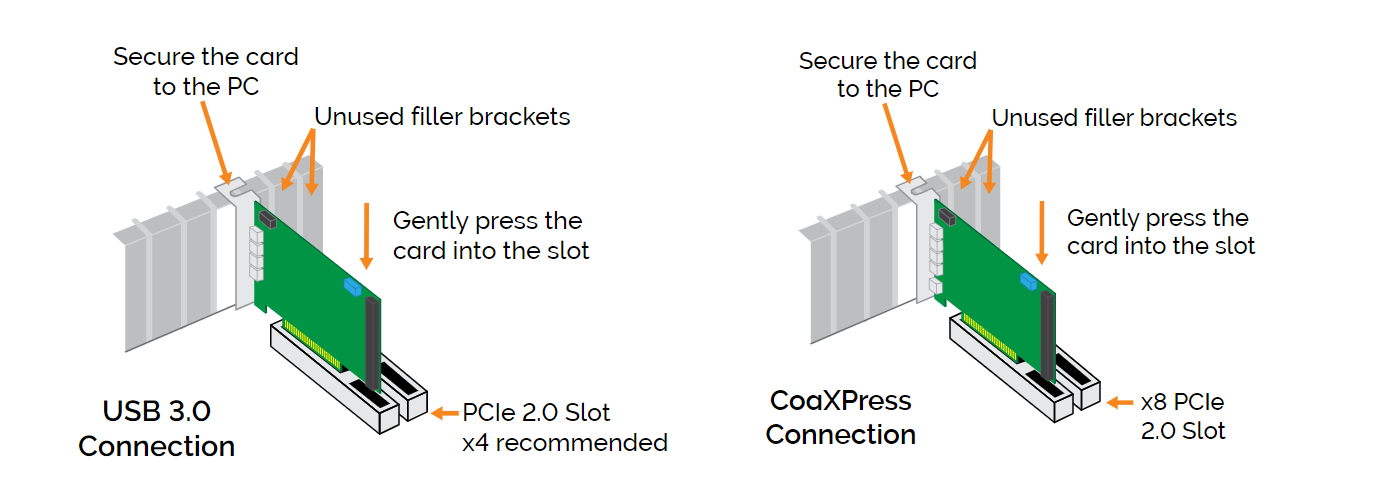

Left USB PCle connection. Right CoaXPress PCle connection.

  1. Unplug all cables from the rear of the computer

  2. Open the PC enclosure to gain access to the expansion slots.

  3. Locate a suitable PCIe (2.0 or newer) slot:

    • USB Card operates in an x1 slot or one with a greater number of channels (i.e. x4, x8 or x16).

    • CoaXPress a minimum of x8 slot is required

    If you are unsure which slot is correct, please consult the PC user manual.

  4. Remove the filler bracket corresponding to the slot you intend to use.

  5. Remove the controller card carefully from its protective ESD packaging and insert the card connector fully into the expansion slot.

  6. Ensure the card’s mounting bracket is flush with any other mounting or filler brackets to either side of it, then secure the controller card in place.

  7. Replace the computer cover and secure with mounting screws if applicable.

  8. Reconnect any accessories you were using previously.

Connecting the Camera to the PCIe Card

Connecting via USB

Connect the USB cable from the camera to the appropriate PCIe card on the control PC.

Connecting via CoaXPress

Connect the 2 Lane CoaXPress cable from the camera to the CXP (PCIe) card on the control PC

Connecting the Camera to the Power Supply

Connect the mains power cable between the camera power input (15 V DC) and the 15 V DC power supply unit. Route cables carefully so they do not pose a tripping hazard or at risk of being unplugged. Avoid tight bends or strain at the connections. Connect the power supply unit to the mains power supply.
