In situ EBSD Analysis of a Bent Al Alloy

Introduction

This study presents changes in microstructure characterised by EBSD in the tensile region of a bent Al alloy 6063 sheet during in-situ isochronal heating. It has been shown that the bending process generates both a texture and strain gradient across the bent region [1,2]. This study takes this into account in order to follow the recovery and recrystallisation driven by strain gradient.

The Oxford Instruments' NordlysMax² detector was used for these experiments as it is designed to handle infrared emissions from heated samples. This detector uses the standard phosphor screen supplied with Oxford Instruments' EBSD detectors.

Experimental

A 2 mm thick Al 6063 (Table 1) sheet was bent perpendicular the rolling direction and samples cut from the bend. These were mechanically planed to a thickness of about 1.5 mm and then polished to 1 µm diamond finish. They were then electro-polished using Struers A2 electrolyte. The samples were finished with a short ion mill in a Fischione 1060 SEM mill.

Table 1. The composition of alloy 6063.

The samples were carefully mounted on a heating stage supplied by Manchester University. The stage was mounted in a FEGSEM in which imaging and EBSD was conducted using a NordlysMax² detector with AZtec^® software. Data was acquired from the tensile region of the bent sample as shown in the schematic diagram in Figure 1. The isochronal heating cycle is shown in Figure 2. EBSD data was acquired at ambient temperature, 243, 320, 350, 363, 382, 400, 425 and 440 ºC, from the tensile region of the sample as indicated in Figure 2. Typical EBSD patterns at ambient and at 425ºC are shown in Figures 3a and b respectively, illustrating that heating has little affect on the pattern quality.

1a)

1b)

1c)

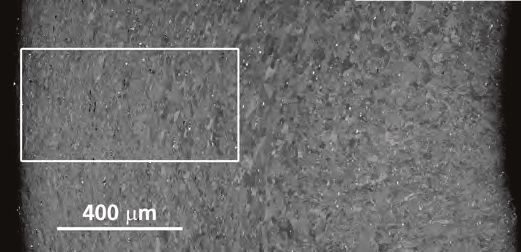

Fig. 1. a) Schematic diagram of the bent sample b) SEM Image from the hashed area in Figure1a. The rectangular area in this image indicates the approximate region from where EBSD data was acquired for the heating experiment and c) shows the principle axes of the sheet.

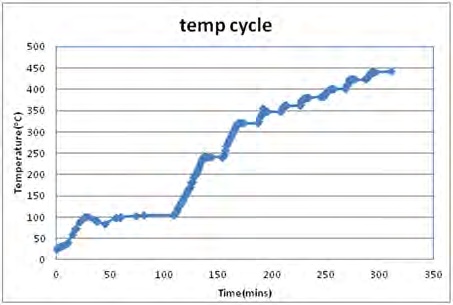

Fig. 2. Temperature cycle used for the in-situ heating test

Results and discussion

A series of EBSD patterns, as well as IPF coloured and recrystallisation maps before and after heating to 440ºC, are shown in Figures 4-6 respectively. These show that the initial, finer, elongated grains have been replaced with coarse grains. However, complete recrystallisation has not been realised and many of the recrystallised grains as expected, are confined towards the highly strained regions at the sample surface. Some islands of unrecrystallised grains also persist within the recrystallised/ recoverd regions.

3a)

3b)

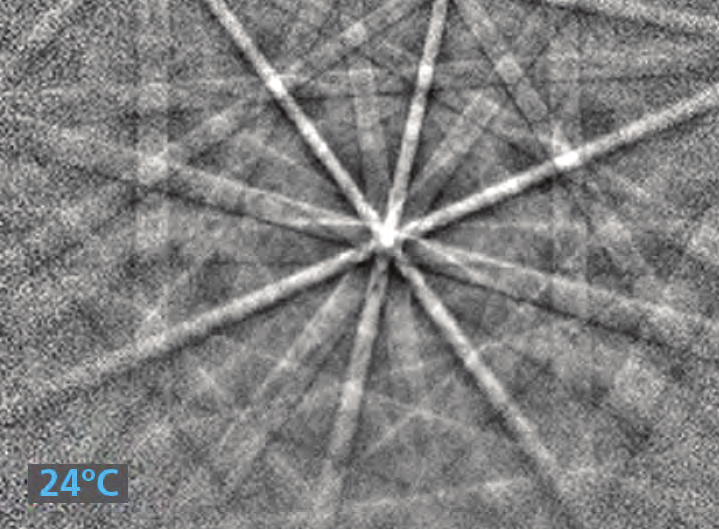

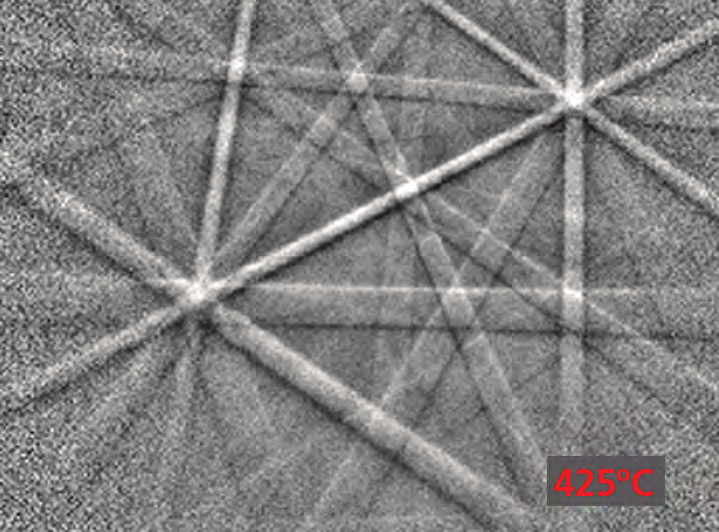

Fig. 3 a and b) Typical EBSD patterns at 24ºC and 425º C respectively.

4a)

4b)

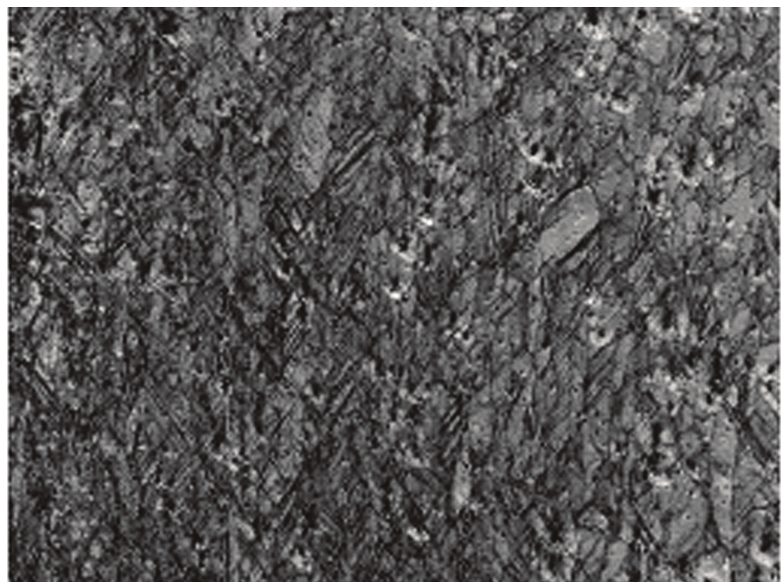

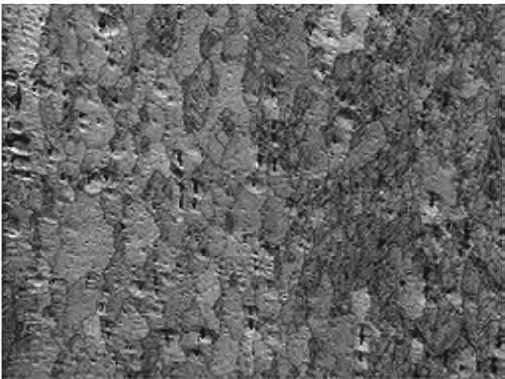

Fig 4. a and b) EBSD pattern quality maps before, and after, heating to 440ºC respectively.

5a)

5b)

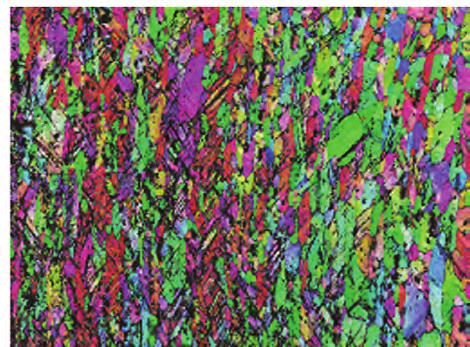

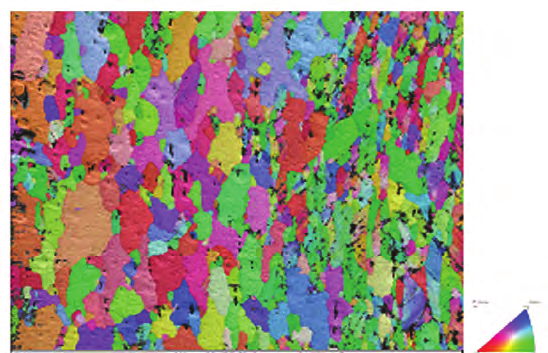

Fig. 5. a and b) EBSD pattern IPF coloured maps before and after heating to 440ºC respectively.

6a)

6b)

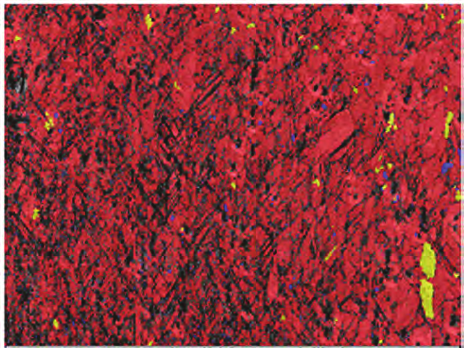

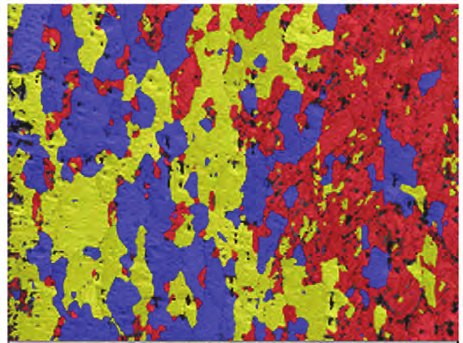

Fig. 6 a and b) EBSD Recrystallisation fraction maps before and after heating to 440ºC respectively, (blue=recrystallised, yellow=sub-structured and red=deformed).

The evolution of the microstructure shown in Figures 3-5, was studied by collecting smaller higher resolution maps from the approximate area marked in Figure 7.

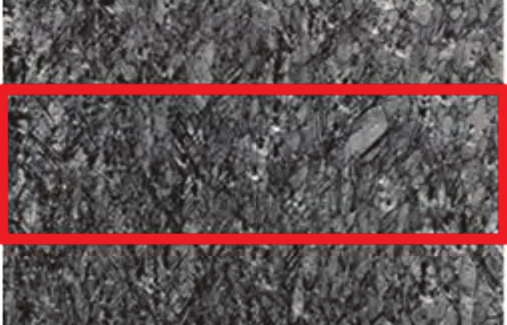

Fig. 7. The rectangular area shows the location where higher resolution maps were collected to study evolution of the microstructure during in-situ heating.

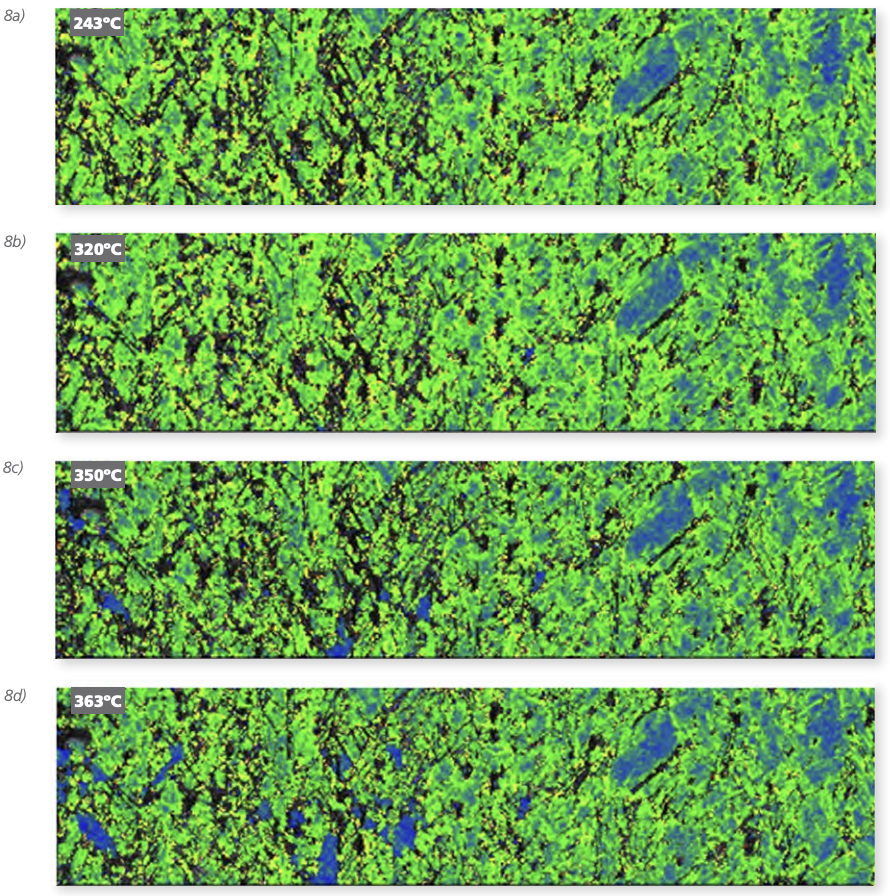

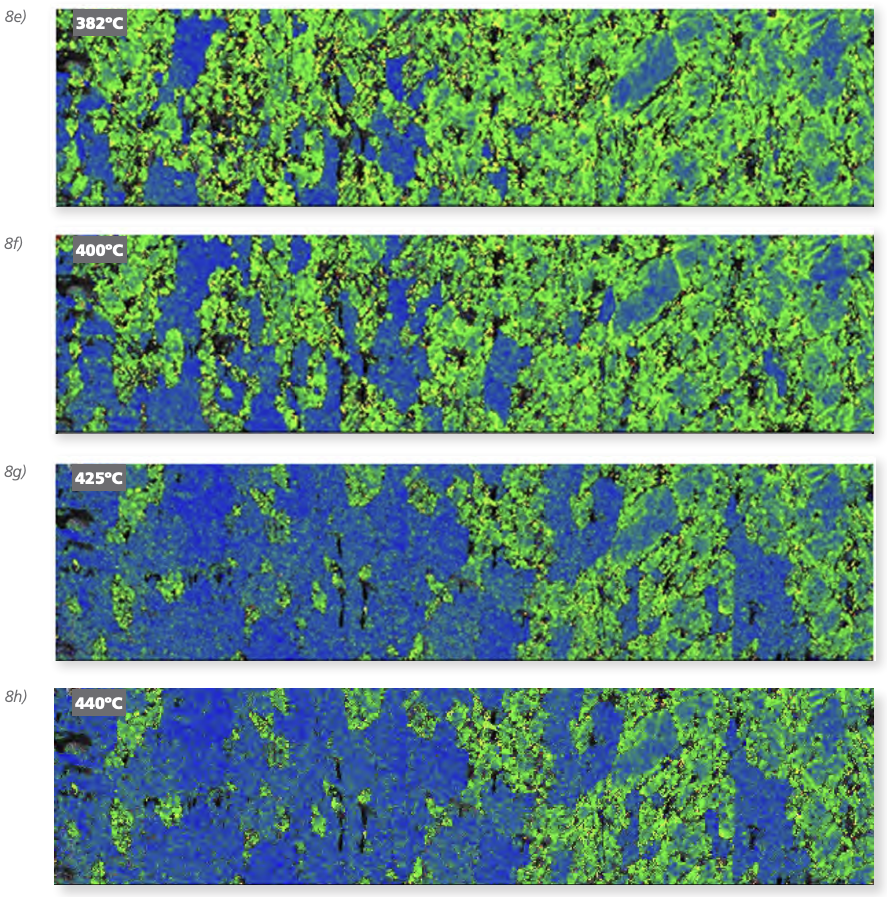

Figures 8 a-g) show EBSD local misorientaion maps, visualising the progression of recrystalisation during heating. The recrystalised grains are shown in blue with minimal local misorientation. These images show that the first hint of recrystalised grains only appear after heating to 350ºC, as illustrated in Figure 8c. While there are new grains in the highest strained region towards the surface as expected at the left of the images, there are a few such grains further away. This indicates that the strain distribution is inhomogeneous, possibly due to local variation of second phase particle densities. With increasing temperature fresh nucleation takes place simultaneously with growth of existing new grains. Grain growth appears to be slightly more rapid in the rolling direction; this could be due to the pinning effect from the second phase particles that exist in the sheet. Events of particle simulated nucleation were not observed, as the resolution of the maps much larger than the particles.

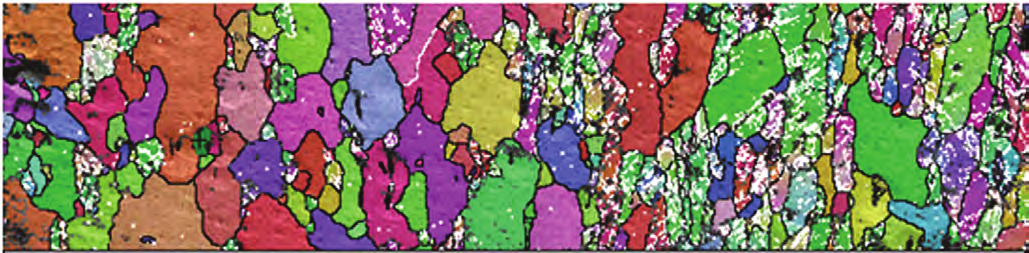

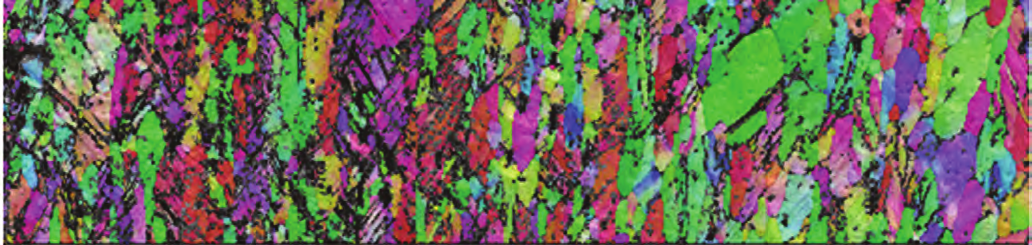

Fig. 8 a-h) EBSD pattern IPF coloured maps after heating to 243, 320, 350, 363, 382, 400, 425 and 440ºC respectively

A graphical representation of the recrystallised, sub-structured (recovered) and deformed fraction versus temperature is shown in Figure 9.

The change in grain orientation spread (GOS) over the heating cycle is shown in Figure 10. In this plot is also shown data for an Al 0.1 Mg alloy [3] where it is observed that the reduction in GOS for alloy 6063 is not as rapid as that found in an Al 0.1 Mg alloy. This again shows that recovery and recrystallisation processes are markedly influenced by second phase particles.

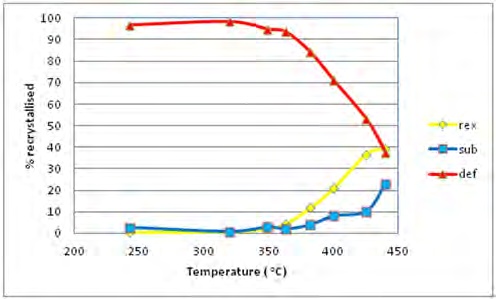

Fig. 9. Plot of the recrystallised, sub-structured (recovered) and deformed fraction versus temperature.

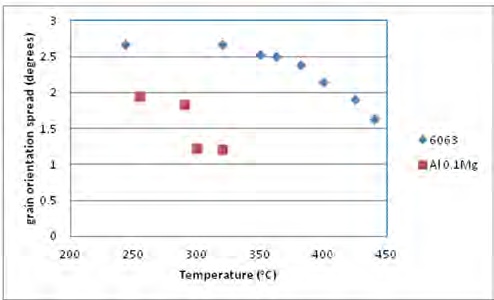

Fig. 10. Plot of grain orientation spread versus temperature.

Comparison of the starting and the final microstructures after heating up to 440ºC is shown in the EBSD IPF coloured maps in Figure 10 a and b), Figure 10b additionally shows grain boundaries, >2º white and >8º black. The unrecrystallised fraction in Figure 10b is discernible from the white coloured low angle boundaries. These maps clearly illustrate that large grains have replaced groups of fine deformed grains. Because the new grains nucleated in regions that had several differently oriented grains it has not been possible to show clearly if the new grains have any relationship with the deformed grain orientations.

11a)

11b)

Fig. 11 a and b) EBSD IPF coloured maps of starting and the final microstructures after heating up to 440ºC respectively. Figure 11b additionally shows grain boundaries, where >2º =white and >8º =black.

However, from an initial inspection of the data set it was possible to discern that the first set of grain to nucleate were rotated Goss, Goss, rotated cube and cube, plus some Copper, Brass and S oriented grains. With the increase of temperature the rotated cube grains grew faster than the other orientations. Existing deformed rotated Goss or Goss grains showed little propensity to recrystallise and resisted being consumed by neighbouring recrystalled grains. An example is labelled A in Figure 11a.

In Figures 12 a and b are shown contoured pole figures after heating to 243ºC and 440ºC. These also show that the intensity of the rotated cube component has increased. However, owing to nearly 80% recovered plus deformed components the deformation texture is still dominant.

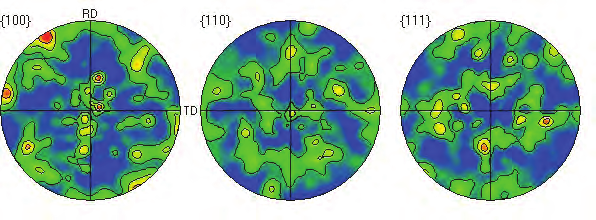

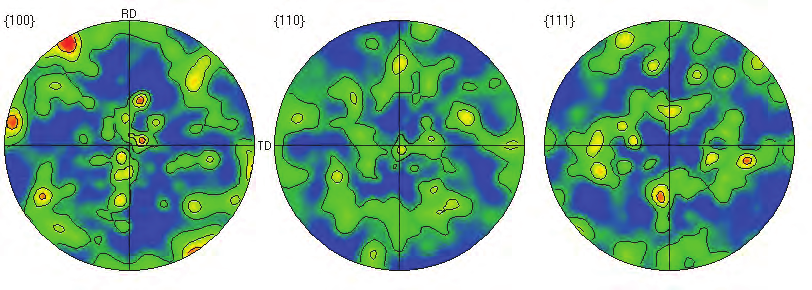

Fig. 12. Set of {100}, {110} and {111} EBSD contoured pole figures after heating to 243 and 440ºC respectively

Conclusions

• The feasibility of conducting in-situ heating experiments while acquiring crystallographic information using Oxford Instruments' EBSD solution has been demonstrated.
• The effect of second phase particles in slowing recovery and recrystallisation processes has been observed.
• The propensity of Goss and rotated Goss grains to resist recrystallisation as well as their nucleation in the early stages of recrystallisation have been noted.
• Rotated cube grain nucleation together with their higher growth rates results in the formation of dominant rotated cube texture in the tensile region of the bent sample.

References

1. H S Ubhi and H Jiang, Materials Science Forum Vols. 715–716 (2012) pp 770–775
2. H S Ubhi and H Jiang, Materials Science Forum Vols. 702–703 (2012) pp 667–670
3. H S Ubhi and M Petrenec, Unpublished work.
